Bending Radius of 4× the Diameter: Site Reality
The published rule for KUKA CABLE solar cable is a minimum bending radius of 4 × the outer diameter, which on the manufacturer's own figures means about 22 mm for 4 mm² and about 24 mm for 6 mm². Most cable damage is not caused by a deliberate tight bend; it is caused by a clip, a gland or a frame edge that quietly pulls the sheath below that radius.
Key takeaways
- The manufacturer publishes a minimum bending radius of 4 × the outer diameter for its 1500 V solar cable.
- Published diameters give roughly 22 mm at 4 mm², 24 mm at 6 mm² and 30 mm at 10 mm² on my own arithmetic.
- Cold bending and static flexibility are both on the published laboratory test list, so the rule is tested, not assumed.
- The operating window starts at −40 °C, which is the temperature where a bend is least forgiving.
Where the radius is actually lost on a roof
Five places account for most violations. The first is the module frame, where a cable is pulled around an aluminium edge with no clip to hold the curve. The second is the conduit entry, where the cable turns through a sharp lip before it reaches the tube. The third is the combiner box gland, where several cables are bundled and pulled to one side. The fourth is a tray transition, and the fifth is the point where a cable is tied off to a rail and then dragged sideways.
None of those is a design error on the drawing. Each is a handling decision made in minutes, and each can push a cable past a limit that the datasheet states in millimetres. That is why the radius figure belongs on the installation sheet rather than buried in a specification, and why the published value is worth converting into a form a fitter can pace out with a tape.
What the manufacturer publishes, and what it tests
The 1500 V solar cable page states a minimum bending radius of 4 × the outer diameter, alongside rated DC 1.8/1.8 kV, a 6.5 kV AC test for 5 minutes and a 10 kV spark test in production. The same page names TUV 2PfG 1169/08.2007, EN 50618:2014 and IEC 62930, and describes the insulation and sheath as XLPO, electron-beam cross-linked and LSHF. Two items on the published laboratory test list speak directly to bending: a cable cold bending test and a static flexibility test. A third, cold elongation testing, is the property that decides whether a bend in winter ends as a crack.
The published ambient window starts at −40 °C. Most installers never work at that temperature, but the material does not know the difference between a cold night in service and a cold morning on site: below the glass transition of a stiff compound, a radius that seemed generous suddenly is not.
Converting the published diameters into a working number
Radius is half of a circle, and a fitter measures a form in millimetres across. For a cable bent through a half-turn, the shape is a U whose outer width is twice the radius plus twice the diameter (my own reasoning, not a published figure). Converting the published 4× figure into that form turns the rule into something that can be checked with a tape measure before a clip is closed.
| Cross-section | Published outer diameter | Minimum radius at 4× | Form width for a half-turn |
|---|---|---|---|
| 4 mm² | 5.5 mm | about 22 mm | about 55 mm |
| 6 mm² | 6.0 mm | about 24 mm | about 60 mm |
| 10 mm² | 7.5 mm | about 30 mm | about 75 mm |
| 16 mm² | 8.8 mm | about 35 mm | about 88 mm |
| 25 mm² | 11.0 mm | about 44 mm | about 110 mm |
| 35 mm² | 12.3 mm | about 49 mm | about 123 mm |
The fourth column is my own arithmetic on the published diameters: radius times two, plus diameter times two. It is the number to give a fitter, because it can be checked with a tape rather than with a judgement.
Clips, ties and the slow bend
A cable tie pulled tight against a rail creates a local radius far smaller than the published figure, and the pressure stays there for the life of the array. The published build does not change that: tinned copper class 5 to IEC 60228 is flexible, and XLPO insulation and sheath are tough, but neither property survives a permanent kink.
The practical fix is to leave slack at every direction change and to use a clip or a saddle sized to the cable rather than a tie sized to the rail. Where a cable enters a building, a short sleeve or a bend former keeps the curve above the published radius at the point where the sheath is most often scored.
Worked example: laying out one direction change
Take a 6 mm² cable and the published 4 × 6.0 mm rule. The minimum radius is 24 mm, so the tightest acceptable U has an outer width of 24 + 24 + 6 + 6, which is 60 mm (my own calculation, applying the published rule to the published diameter). If the same cable has to turn inside a 40 mm conduit body, the turn is tighter than the rule allows and the route needs a larger fitting or a shallower angle.
Run the same arithmetic on a 10 mm² cable and the form grows to about 75 mm, while a 25 mm² cable needs roughly 110 mm (my own arithmetic from the published diameters). Group several sizes in one bundle and the limit is set by the largest member, not by the average.
The chart, and how to read it on site

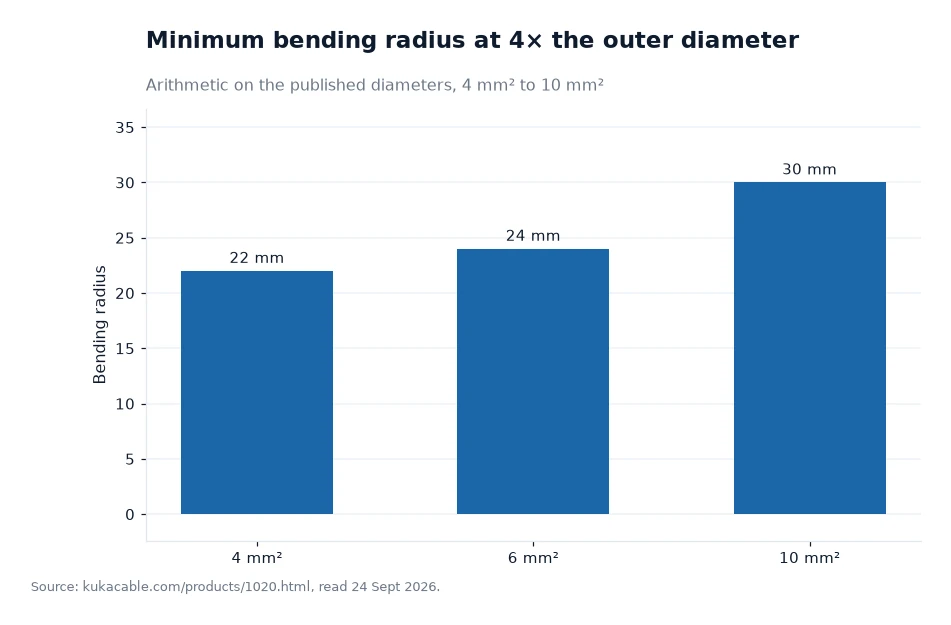

The chart below draws the manufacturer's 4× radius rule against the published diameters for three sizes. Its own title is the rule itself: minimum bending radius at 4× the outer diameter, with bars at about 22 mm, 24 mm and 30 mm for 4 mm², 6 mm² and 10 mm². Use the shortest bar as a floor for a 4 mm² tail and the tallest as the floor for a 10 mm² run; the numbers are small enough that a 30 mm coin is a fair reminder of the largest one.
Frequently asked questions
Does the 4× rule change with temperature?
The published minimum stays at 4 × the outer diameter, and the published operating window runs from −40 °C to +90 °C. The rule is a minimum at any temperature, and the margin for handling a cold cable is smaller in practice.
How can a bend be checked after installation?
Measure the width of the form against the last column of the table above, which derives the outer width from the published diameter. A cable that fails the check can usually be re-clipped rather than replaced.
What to hand the installation team
Give the fitters two numbers, not a rule: the published diameter and the derived form width for each size on the job. Add the note that slack must be left at every direction change, and that a tie pulled against a rail is not a clip. Ask the supplier for the cross-section table and the cold bending and static flexibility entries on the solar cable pages, so the radius on the sheet and the radius on the roof come from the same source. KUKA CABLE publishes a service life often lasting 25 years or more; a radius respected at commissioning is one of the quieter reasons that figure is plausible.
The radius figures quoted in this piece all trace to the manufacturer's own site; the published diameters were copied 24 Sept 2026[1].
